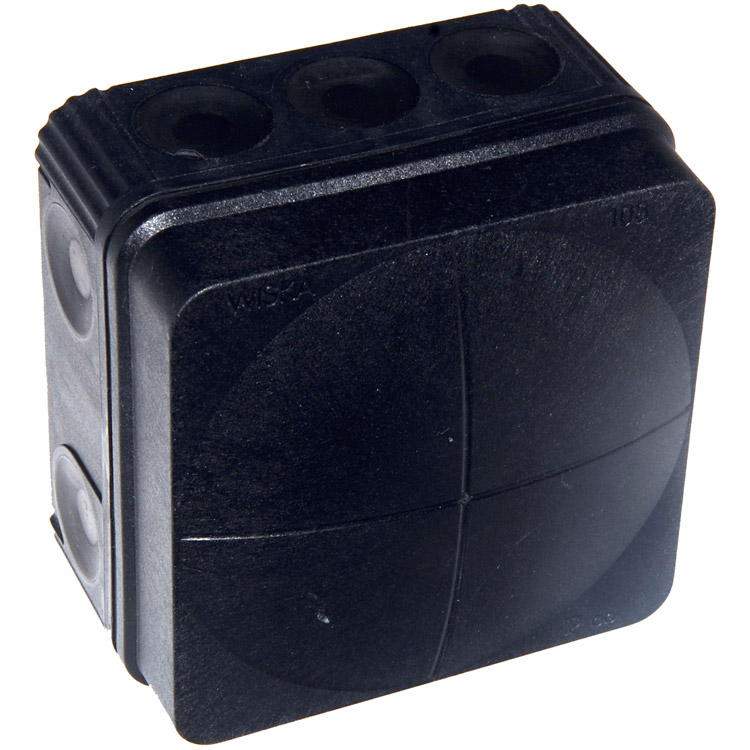

Wiska Combi 108 Black Weatherproof Junction Box

Wiska 61998 Combi 108 Junction Box.
High quality dustproof weatherproof IP66 Rated Juction Box

Wiska 61998 Combi 108 Junction Box. This high quality dustproof weatherproof IP66 Rated Juction Box is ideal for wet rooms and similar enviroments. Internally consisting of a 5 way junction terminal block, the box has self sealing punched membraines around the sides which create a weatherproof seal when cables are inserted.

W76mm x H76mm x D51mm.

Also available in Grey
Protection class to EN 60 529: IP 66
Flame protection: glow wire test 750° C acc. to EN 60695-2-11
Temperatures during installation: -5°C to 60°C
Temperature range of material: -30°C to 100°C, intermittent up to approx. 120°C
Voltage: 400 V
Material: Polypropylene, reinforced glass fibre; sealing: thermoplastic elastomere
Terminals/poles: 2,5 mm²
Fixing: With mounting clip for snap-on fixing or 2 internal openings outside of the sealing area
elastic self-sealing membranes for cable entry without mechanical devices at the side and 2 in the base
